Packing included: 1 x Mini Hidden Camera, 1 x Manual

Size: Φ9mm

S/N ratio: 52db

System: NTSC/ PAL

Work current: 70mA

Auto gain control: out

View angle: F2.0 / 70°

Lens: 3.7mm pinhole lens

White balance control: out

Video out: 1.0V p-p/75ohm

Audio out: 1.0V p-p/1Kohm

Scanning system: 2 : 1 interlace

Pick up element: single chip 1/3" CMOS

Power requirement: DC 12V (not included)

Sensor dimension: 4.75mm (H) × 3.55mm (V)

Horizontal resolution: Approximately 800 TV Lines

Image signal process: digital signal processing system

Number of pixel: NTSC 656(H) × 492(V), PAL 786(H) × 576(V)

Operating temperature: - 10° C - 50°C, less than 90% RH

Electronic shutter: NTSC out (1/50 S TO 1/100000 S), PAL out (1/60 S TO 1/100000 S)

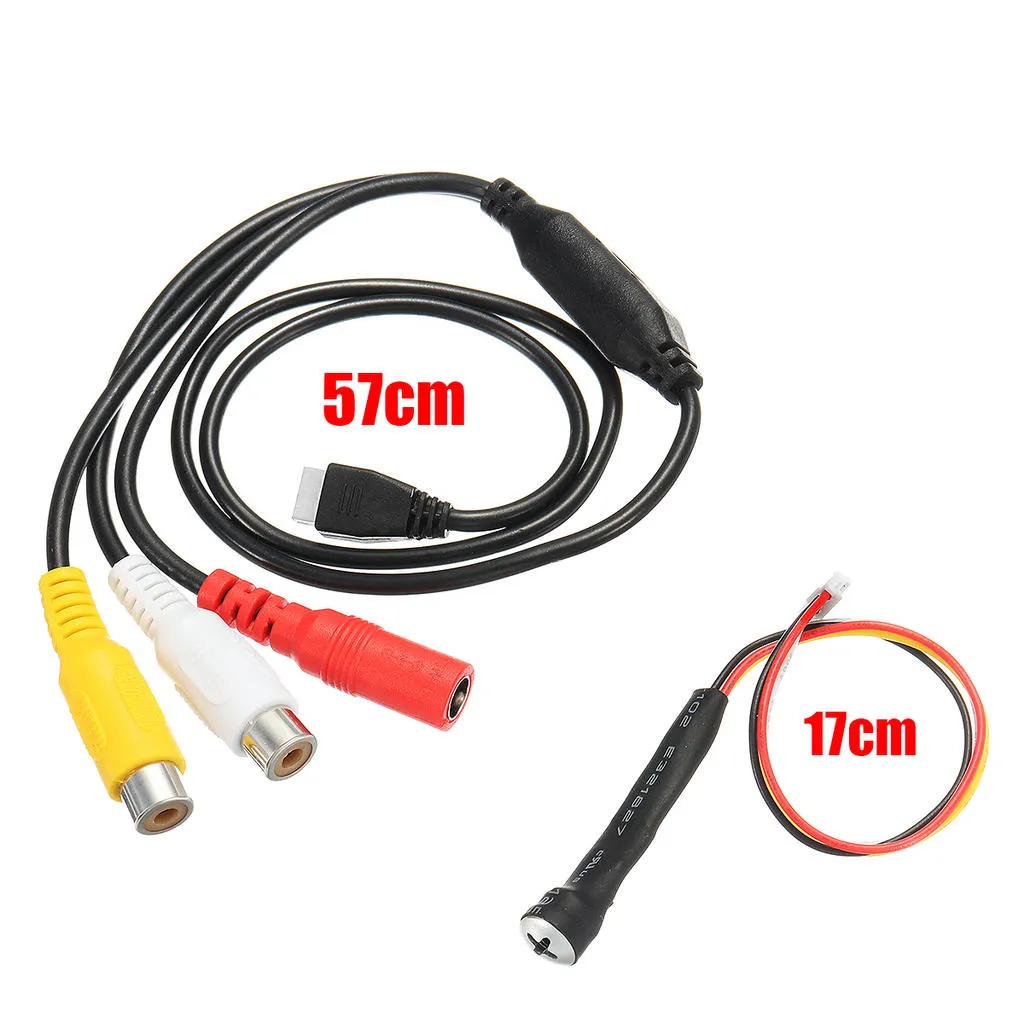

Line: Red: DC 12V, Yellow: video out, White: audio out

Features: It's a small but high definition CCTV camera, with 3.7mm screw-style pinhole lens, built-in sensitive microphone and easy to install. Use for home and business security, shops, pubs and restaurants, building sites, warehouses... etc.
